Why Standardized ETDRS Illumination Matters
A chart can look evenly illuminated and still produce measurement conditions that are difficult to compare across clinics or research sites. For best corrected visual acuity (BCVA) and low contrast visual acuity (LCVA), the equipment, chart, testing distance and illumination all influence how confidently results can be interpreted.
Research on the photometric performance of retro-illuminated acuity charts illustrates why those details deserve attention. A published evaluation found variation in luminance uniformity among the cabinets examined, including older units that had exceeded recommended lamp-replacement intervals. The researchers also cautioned that the clinical relevance of some uniformity thresholds warranted further examination. Their findings support routine verification rather than the assumption that a glowing cabinet is necessarily performing to specification.
For practices upgrading examination equipment or clinical trial teams coordinating multiple sites, the practical question is not simply whether a cabinet produces light. It is whether the selected cabinet and chart combination matches the testing protocol and can be maintained and documented accordingly.
BCVA and LCVA Measure Different Aspects of Vision
BCVA measures the sharpest visual acuity achievable with appropriate refractive correction, commonly using high-contrast letter charts. In ophthalmic studies, a standardized BCVA assessment can provide an important outcome measure, but exact chart, luminance and distance requirements are set by the individual protocol.
LCVA assesses the ability to identify targets presented at lower contrast. It can reveal aspects of visual difficulty that may be less apparent on a high-contrast chart. The distinction is particularly relevant in neurological research, where subtle changes in visual function can be informative even when other clinical measures remain relatively stable.
In a 2024 study in Frontiers in Neurology, investigators assessed 76 people with newly diagnosed relapsing-remitting multiple sclerosis. Among the 62 participants included in the reported follow-up correlation analyses, lower performance on a 2.5% contrast visual acuity test was associated with higher Expanded Disability Status Scale scores at one and two years. This was an observational association within a specific patient group, not proof that LCVA independently predicts outcomes in all patients.
The revised 2024 McDonald diagnostic framework, discussed in a 2025 publication, also reflects greater attention to optic nerve involvement in multiple sclerosis. It includes the optic nerve as a fifth anatomical location and discusses optical coherence tomography and visual evoked potentials as supporting evidence. LCVA remains a useful functional assessment, but it should not be confused with those formal diagnostic measures.
A well-illuminated chart is not necessarily a standardized chart. Reliable visual acuity measurements depend on controlled testing conditions.
How the ESC2000 Supports Standardized BCVA Testing
The Good-Lite ESC2000™ illuminated ETDRS cabinet is designed to provide consistent LED backlighting for compatible visual acuity charts. The ESC2000-01, also identified as ESC2000-FIX-160, has a fixed nominal output of 160 cd/m². This can make it a practical option for testing arrangements that specify or permit that setting.
Not every study uses the same luminance requirement. Some protocols specify 85 cd/m², and a fixed 160 cd/m² cabinet should not be assumed to satisfy that instruction without protocol confirmation. Good-Lite also offers the ESC2000-02 with selectable 3, 85 and 160 cd/m² settings, and the ESC2000-03 with nine preset levels. Those differences should be considered before procurement.
Compatible ETDRS and logMAR charts provide the familiar progression of optotype sizes used in standardized acuity measurement. The chart design, specified test distance and scoring method remain as important as the illumination setting. A well-matched system gives examiners a repeatable procedure rather than relying on the cabinet specification alone.
Supporting Low-Contrast Visual Acuity Testing
Low-contrast testing depends on the relationship between the chart's printed targets, its background and the illumination provided during examination. Consistent conditions are particularly important when a series of measurements is intended to reveal relatively small changes over time.
One compatible option is the Evans Letter Contrast Test (ELCT), offered by Good-Lite for the ESC2000™ and ESV3000™ cabinets. The ELCT uses Sloan letters arranged in balanced triplets with successive contrast steps. Unlike a conventional high-contrast ETDRS acuity chart, it is designed to assess letter contrast performance at a specified testing distance of 1 meter.
Clinicians should choose a chart according to the assessment being performed rather than treating all low-contrast tests as interchangeable. The ELCT's contrast-step method, for example, is not identical to the 2.5% LCVA chart used in the multiple sclerosis study discussed above. A study protocol should specify the required chart and scoring procedure.
LED Performance, Maintenance and Luminance Verification
Illuminated cabinets are subject to practical maintenance considerations, including lamp aging, equipment condition and use across different clinical sites. Traditional fluorescent systems may require periodic lamp replacement and warm-up procedures. LED-based designs can simplify routine operation and reduce the need for those particular maintenance tasks.
Good-Lite specifies a 50,000-hour rated LED lifespan for the ESC2000™ and describes its low-maintenance design as requiring no bulb warm-up or burn-in. That rating refers to expected LED service life; it is not a guarantee that a cabinet remains photometrically calibrated for 50,000 hours without verification. Clinical research teams should follow their study's equipment qualification, inspection and documentation requirements.
The ESC2000™ also provides remote-controlled operation, integrated chart storage, a slim cabinet profile and a universal 100–240 V power supply. These features can simplify installation and operation, especially where multiple exam lanes or international research sites must follow consistent workflows. Local plug requirements and study-specific equipment checks still apply.
Choosing the Right Cabinet for Your Testing Protocol
The ESC2000-01's fixed 160 cd/m² output is useful when that level matches the intended examination. When testing requires multiple predefined luminance settings, the ESC2000-02 or ESC2000-03 offers more flexibility. Selection should be driven by the protocol's required illumination, chart format, documentation and any need to switch between photopic and mesopic testing conditions.
For research settings where built-in calibration is a priority, Good-Lite also offers the ESV3000™ ETDRS Clinical Trial Standardized Viewer. Its product specifications describe self-calibrating technology and selectable 3, 85 and 160 cd/m² levels. Those features make it an alternative worth evaluating where the research workflow calls for active luminance adjustment and verification.
Product-level claims regarding regulatory compliance or certification should be supported by the current documents for the exact model being supplied. A manufacturer statement of conformity is not, on its own, a substitute for confirming a sponsor's equipment requirements or applicable regulatory obligations.
Supporting Reliable Clinical Research
BCVA and LCVA answer different questions about visual function, but both benefit from clearly defined procedures and reliable equipment. Choosing the right illuminated cabinet means looking beyond brightness alone to the protocol, chart type, assessment distance, maintenance expectations and any need for documented calibration.
Good-Lite supports practices, institutions and research teams with illuminated ETDRS cabinets and compatible charts. If you are equipping a new trial site, updating an older system or comparing fixed and adjustable luminance options, explore Good-Lite's Clinical Research solutions or contact the team for model and chart compatibility guidance.
Explore Good-Lite ETDRS Testing Solutions
Explore illuminated ETDRS viewers and a compatible low-contrast chart to support your testing setup. Select products according to the chart format, luminance setting and verification needs of your protocol.
ESC2000™ ETDRS Clinical Trial Cabinet: LED illuminated ETDRS cabinet with fixed and adjustable luminance models to suit different documented testing requirements. Charts sold separately.
Evans Letter Low Contrast Test (ELCT): Compatible contrast chart for the ESC2000™ and ESV3000™, using Sloan-letter triplets and graduated contrast levels at 1 meter.
ESV3000™ ETDRS Clinical Trial Standardized Viewer: Self-calibrating ETDRS viewer with preset luminance levels for research settings requiring controlled lighting conditions.

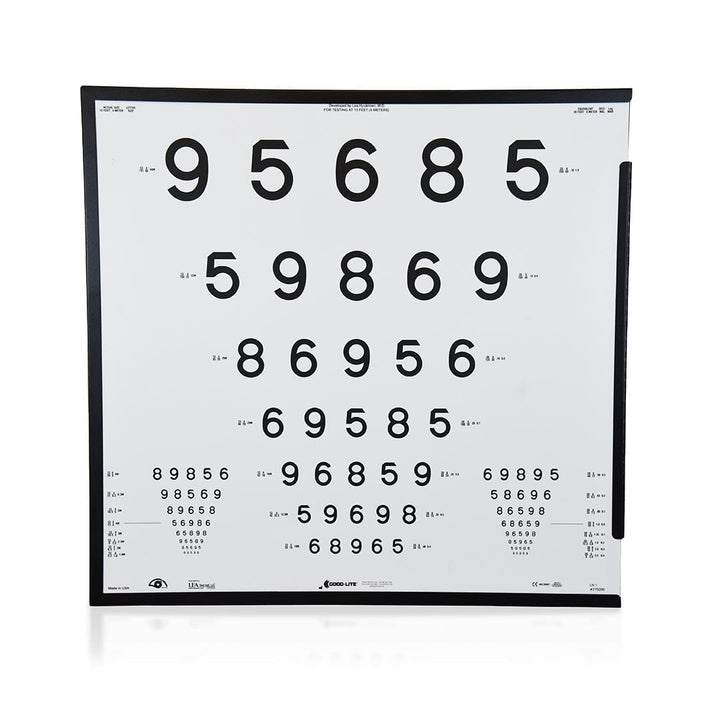

Good-Lite ESC2000™ Illuminated ETDRS Clinical Trial Cabinet
Standardized Visual Acuity and Contrast Testing The Good-Lite ESC2000™ Illuminated ETDRS Clinical Trial Cabinet provides consistent LED retro-illuminati...
$1,655.00

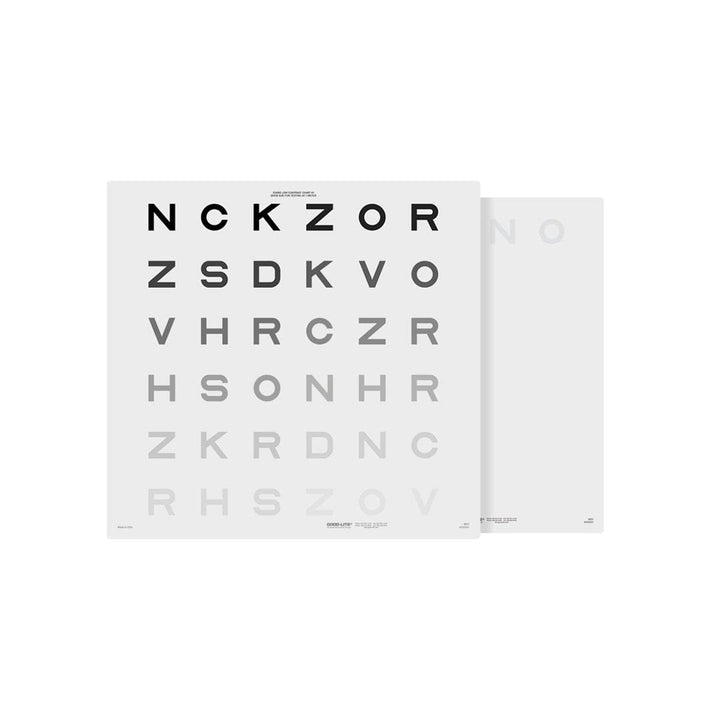

Chart(Distance): ESV3000™ and ESC2000™ - Evans Letter Low Contrast Test (ELCT)
The Evans Letter Contrast Test (ELCT) chart is the first standardized test for letter contrast. The ELCT chart is designed to be used with either the ES...
From $614.25

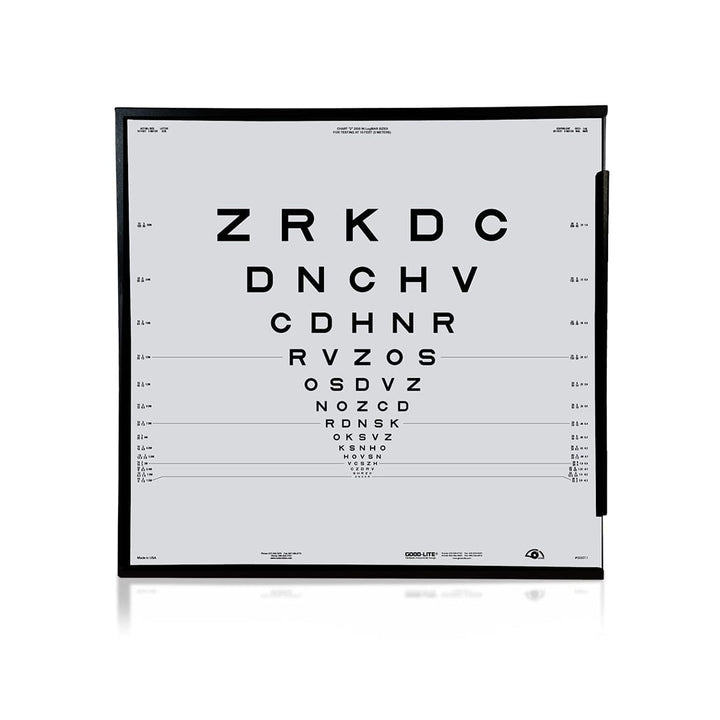

Good-Lite ESV3000™ ETDRS Illuminated Eye Chart Cabinet for BCVA Testing
