Neutral Density Bars: When and How to Use Them in Clinical Practice

by Good-Lite Co July 15, 2026

by Good-Lite Co Published on July 15, 2026Updated on July 15, 2026

What Is a Neutral Density Bar and How Does It Work?

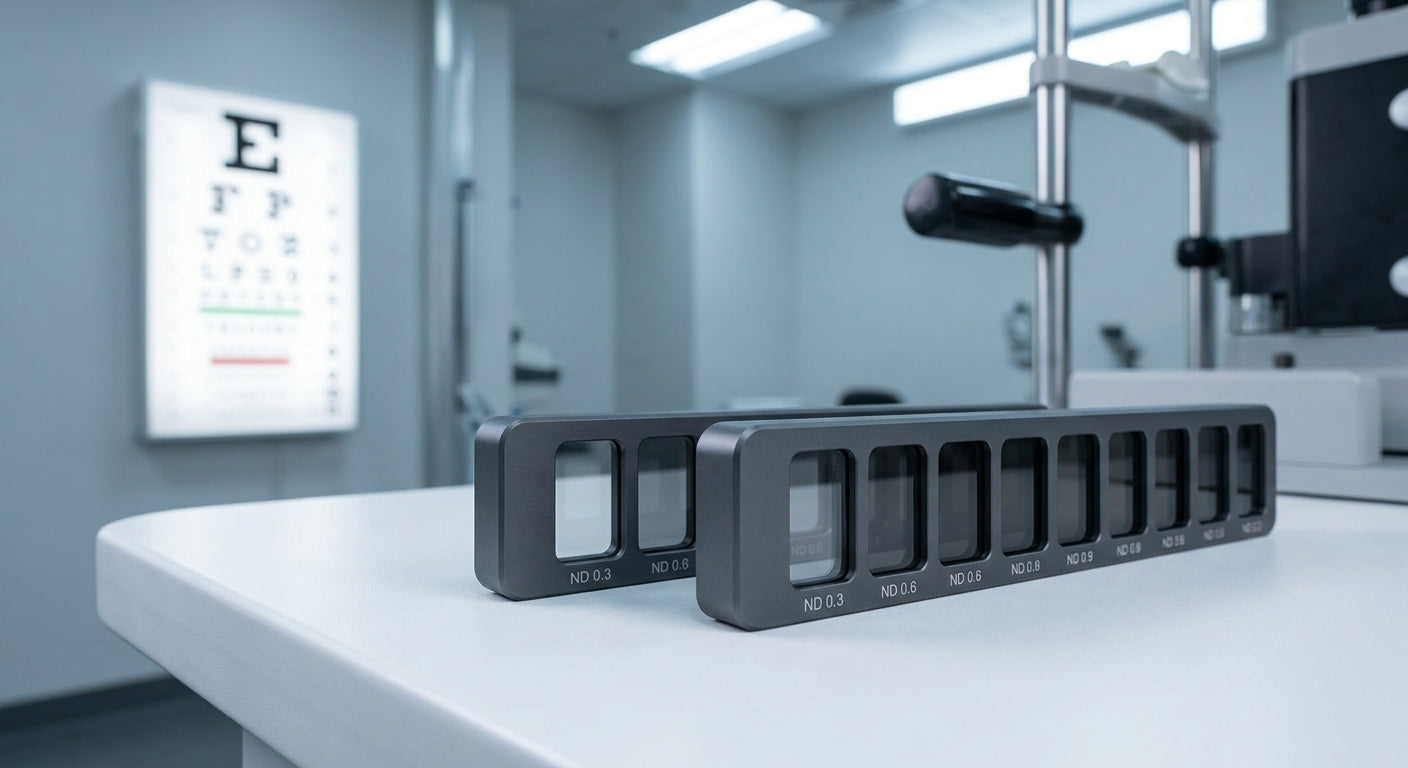

A neutral density (ND) bar is a handheld instrument consisting of a series of calibrated filters mounted in a single strip. Most standard ND bars include six optical density steps: 0.3, 0.6, 0.9, 1.2, 1.5, and 1.8 log units. Each step progressively reduces the amount of light reaching the eye by a known, quantifiable amount, allowing clinicians to measure pupillary responses and visual function with precision.

ND bars come in two main formats. Pocket-sized bars are compact enough for bedside neurology evaluations and portable screening. Larger slider-format bars allow smooth, stepwise filter progression and are better suited for optometry office settings where repeated or detailed assessments are routine.

Compared to non-portable electronic pupillometers, the ND bar is a practical, affordable, chair-side tool. It requires no power source, no calibration software, and fits in a coat pocket. For everyday functional vision assessment, that combination of portability and clinical utility is difficult to match.

Clinical Use Case 1: Quantifying RAPD with the Swinging Flashlight Test

The primary application of the neutral density bar is quantifying a relative afferent pupillary defect (RAPD), an objective indicator of unilateral or asymmetric damage to the anterior afferent visual pathways. The ND bar works in tandem with the swinging flashlight test (SFT) to convert a subjective clinical observation into a measurable value.

The protocol is straightforward. Begin with the unaided SFT to establish whether a pupillary asymmetry exists. If you observe or suspect an RAPD, place the 0.3 log unit filter in front of the unaffected fellow eye. This lowest-density filter is particularly useful for uncovering borderline or subtle defects that the unaided test may miss. Then swing the light again. If the RAPD persists, escalate to the next filter density. Continue stepping up through 0.6, 0.9, 1.2, 1.5, and 1.8 log units until the pupillary responses equalize. The filter density at which equalization occurs quantifies the RAPD.

Why does this matter? RAPD detection is a near-universal marker for unilateral optic neuritis. According to a study published in PubMed, RAPD was detected in 96% of acute unilateral optic neuritis cases and 92% of recovered cases. In glaucoma, RAPD prevalence sits at approximately 25%, with magnitude correlating most closely with visual field loss within 30° eccentricity, as reported in a study indexed on PubMed.

The clinical relevance is growing. U.S. optic neuritis prevalence reached 51.6 per 100,000 people in 2023, increasing 1.08-fold since 2016, according to data from PMC/NIH. A 2025 study of Syrian patients found that neurological factors accounted for 69.2% of RAPD cases, with affected patients significantly older (mean age 67.4 years) than unaffected individuals (mean age 48.18 years, p < 0.001). Fast, low-cost RAPD quantification at chair-side is more important than ever.

Clinical Use Case 2: Differentiating Functional vs. Organic Amblyopia

One of the most valuable and underutilized applications of the ND bar is answering a critical diagnostic question: is a patient's reduced vision caused by functional (strabismic) amblyopia, or by organic pathology such as optic nerve atrophy, macular degeneration, or chorioretinitis?

The test protocol begins with measuring baseline visual acuity in the amblyopic eye. A low-density neutral density filter (typically 0.4 log units) is then placed in front of that eye, and VA is re-measured. The interpretive key lies in how the eye responds. In functional or strabismic amblyopia, VA is minimally affected or may actually improve under the low-density filter. In organic amblyopia or optic neuropathy, even a light filter causes a marked drop in acuity.

This principle was established by Von Noorden and Burian in foundational research demonstrating that ND filter testing can identify amblyopic eyes and distinguish strabismic amblyopia from organic causes. A 2012 prospective controlled clinical trial published in the Canadian Journal of Ophthalmology confirmed these findings: a 0.4 NDF significantly improved VA in strabismic amblyopic eyes (p = 0.0011), while a 3.0 NDF reduced VA in all eyes (p < 0.0001). The interaction effect between NDFs and amblyopic versus non-amblyopic eyes was also significant (p < 0.0001).

Despite this strong evidence, the American Academy of Ophthalmology notes that ND filter testing has not been incorporated into standard amblyopia screening programs. This represents a meaningful gap. Amblyopia is the leading cause of monocular childhood vision loss, and according to a 2025 review in Expert Review of Medical Devices, the condition is projected to affect over 220 million people worldwide by 2040. Practitioners who adopt ND filter differentiation testing now are ahead of the curve.

Choosing the Right Filter Bar: ND Bar vs. Sbisa Bar vs. Bagolini Filter Bar

Three filter bar types are commonly used to measure suppression density: the neutral density filter (NDF) bar, the Sbisa bar (also called the Bagolini filter bar), and the Bagolini filter (BF) bar. All three share a similar physical construct, but they do not produce identical readings under the same conditions.

Research published in PMC/NIH found a high correlation (r = 0.95, p < 0.001) between the Sbisa bar and NDF bar when measuring RAPD, making the Sbisa bar a validated alternative. However, under normal lighting with a full-intensity light source, the NDF bar measures suppression as significantly denser than either the BF or Sbisa bars, according to a comparison reviewed in Eye News.

Test-retest reliability is another consideration. A study of 10 strabismic adults found that from first to third test, the BF bar showed a statistically significant change across repeated testing, while the Sbisa and NDF bars remained more stable. This makes the NDF bar the preferred choice when standardization and reproducibility are priorities.

Practically speaking, if your clinic needs consistent suppression quantification across visits and providers, the NDF bar offers the most reliable results. The Sbisa bar is a strong alternative, particularly for RAPD measurement. Regardless of which bar you use, control and document your illumination levels. Lighting conditions directly affect suppression readings, and failing to standardize them compromises reproducibility.

Emerging Applications: Binocular Vision Therapy and Beyond

ND filters are finding new roles beyond traditional RAPD and amblyopia testing. In binocular vision rebalancing, placing a 1.5 log unit ND filter in front of the dominant fellow eye has been shown to restore interocular contrast balance in some amblyopic observers, as described in research from PMC/NIH. This approach bridges the gap between traditional patching and next-generation digital dichoptic therapies, offering vision therapists a practical, analog tool for binocular retraining.

ND filters also play a role in corneal densitometry. A standardized protocol using neutral density filters with controlled room lighting enables reproducible Scheimpflug imaging for monitoring corneal scar progression over time, as documented in a PMC case report.

Looking ahead, the 2025 DESIROUS study protocol validates binocular vision assessment tools, including filter-based testing, for digital eye strain syndrome. A 2025 bibliometric analysis in Frontiers in Neuroscience found that functional vision and treatment parameter optimization remain critically underrepresented in amblyopia research. ND bar testing fits squarely into that gap as a functional vision metric with real clinical value.

Practical Tips for Integrating ND Bars into Your Clinical Workflow

Start every RAPD evaluation with the unaided swinging flashlight test to establish your baseline before any filters are introduced. If you detect or suspect a defect, begin with the 0.3 log unit filter to catch subtle or borderline APD that the unaided SFT alone may miss.

Before each test, control and document your room lighting conditions. Suppression and pupillary readings vary with ambient illumination, so consistent lighting is essential for reproducibility across visits and between providers.

Record the specific filter density at which pupillary equalization occurs (for RAPD) or at which VA changes (for amblyopia differentiation). These values enable meaningful longitudinal monitoring and help track disease progression or treatment response over time.

Choose your format based on setting. Pocket ND bars work well for bedside neurology and portable screening scenarios. Slider-format bars offer smoother stepwise progression and are better suited for clinic-based evaluations where precision matters most.

Finally, ND bar findings are one piece of the clinical picture. Always interpret results alongside full clinical history, visual field testing, and imaging where indicated.

Why the Neutral Density Bar Deserves a Place in Every Exam Room

The ND bar serves three core clinical roles: RAPD quantification, amblyopia differentiation, and suppression measurement. It is portable, affordable, non-invasive, and usable at chair-side without specialized equipment. Few clinical tools offer this combination of diagnostic range and practical simplicity.

The evidence supporting ND filter testing in amblyopia differentiation is strong, yet it has not been adopted into standard screening programs. That gap represents an opportunity for forward-thinking practitioners to improve diagnostic accuracy in their own clinics today.

At Good-Lite Co, we have been supporting eye care professionals with trusted vision testing tools since 1930. Our product range, including ND bars for pediatric, adult, low vision, and vision therapy applications, is built to meet the needs of clinicians who take functional vision assessment seriously. With optic neuritis prevalence on the rise and amblyopia projected to affect hundreds of millions worldwide, the case for adding an ND bar to your exam room has never been clearer.
