Contrast Sensitivity Testing: Key Findings from the CSV-1000 Study

In modern vision evaluation, contrast has become one of the most important indicators of real-world visual performance. Unlike standard acuity tests that rely on high-contrast letters, contrast sensitivity determines how well a patient detects subtle differences across spatial frequencies. According to the CSV-1000 clinical research you provided, targeted contrast measurements can successfully predict a patient’s full contrast sensitivity function (CSF), offering clinicians a more efficient and highly informative assessment method. This represents a major shift in how vision testing can be streamlined without sacrificing accuracy.

While visual acuity measures how clearly someone can identify high-contrast symbols on an eye chart, contrast sensitivity examines how well the eyes detect low-contrast elements in everyday environments. Tasks such as navigating in dim lighting, driving in fog, detecting faces or recognizing objects in glare all depend heavily on contrast performance. The National Eye Institute notes that reduced contrast sensitivity can profoundly impact quality of life even when acuity remains normal.

This is why the CSV-1000 study is so impactful: it demonstrates that simplified measures of contrast can reliably estimate the full CSF curve, allowing eye-care professionals to gain essential functional insights with significantly less testing time.

The CSV-1000 contrast sensitivity test has long been used to evaluate patient performance across a range of spatial frequencies. In the study you supplied, researchers examined whether full CSF measurements—typically requiring time-consuming multi-frequency testing—could instead be predicted using only key contrast data points. Participants completed three established CSF tests: the CSV-1000, an M&S sine-wave grating test and a quick CSF adaptive method. The investigators then analyzed the relationship between peak contrast sensitivity, peak spatial frequency and overall CSF shape.

A central conclusion from the study is that an individual’s full CSF curve can be approximated with high accuracy using only high-contrast visual acuity and a letter-based contrast threshold. These two measures reflect how the visual system performs across both low and high spatial frequencies, providing enough information to estimate the broader CSF pattern.

Contrast sensitivity spans multiple spatial frequencies. High frequencies represent fine detail, while low frequencies represent larger shapes. Patients may perform well on high-contrast letters yet still struggle in low-light conditions because their contrast sensitivity at specific frequencies is impaired. Understanding this distinction is essential for clinicians evaluating patient function beyond the traditional eye chart.

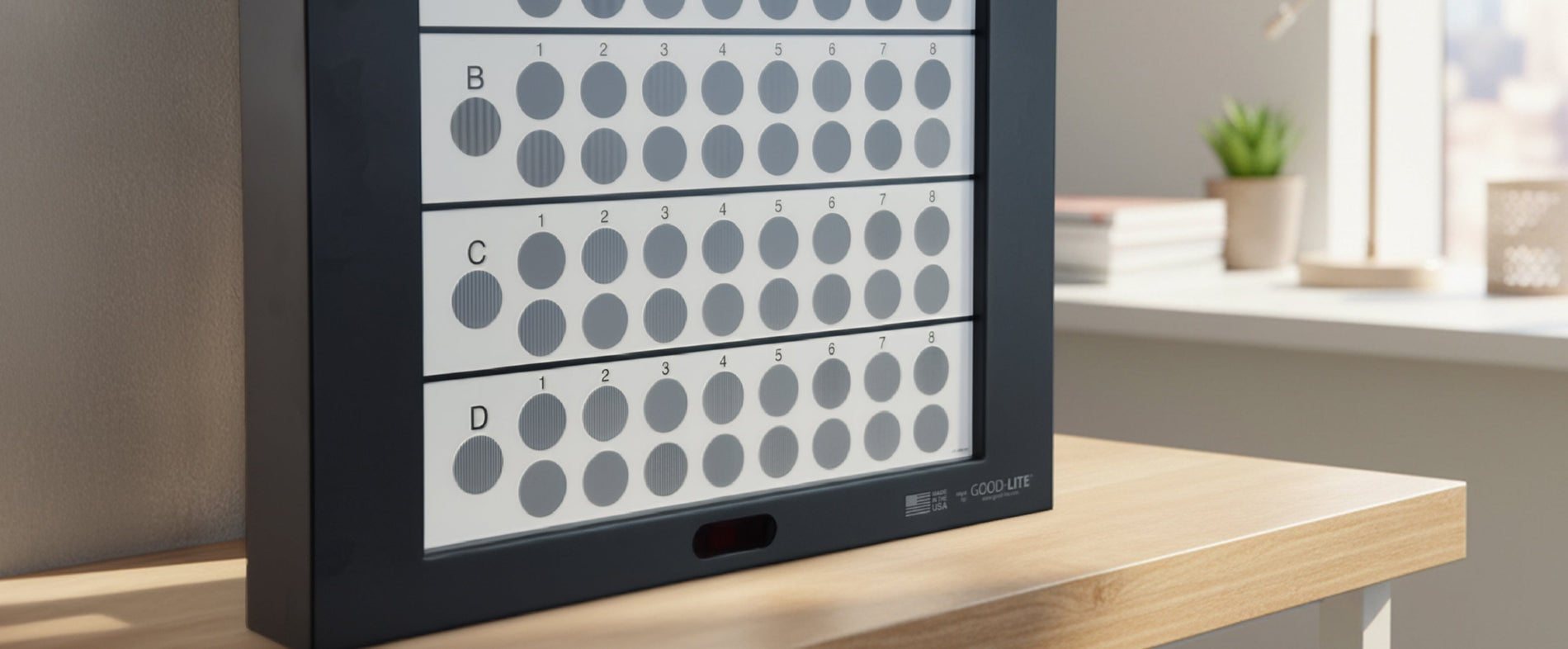

The CSV-1000 device measures contrast thresholds at four spatial frequencies using standardized illumination and precisely calibrated gratings. The consistency of its lighting conditions and chart design has made it a common tool for both clinical and research applications. According to the study, the CSV-1000’s predictable performance supports its use as a baseline measure when modeling full CSF results.

A major finding from the study is that peak contrast sensitivity and peak spatial frequency are the two parameters that explain most differences in CSF curves among individuals. Because these values correlate strongly with general visual performance, they can be used to reconstruct an estimated full CSF curve with surprising precision.

The research team applied a “zero-parameter” model using a standard CSF template that shifts vertically and horizontally based on a patient’s peak contrast sensitivity and peak frequency. These two adjustments are sufficient to approximate a patient’s overall CSF curve. This finding suggests that full-frequency contrast testing may not be necessary for many clinical scenarios and that CSF estimation can often be achieved quickly.

An important outcome of the study is that results from the CSV-1000, the sine-wave test and the quick CSF method all produced data that aligned well with the predictive model. This indicates that the approach is robust across testing platforms and does not depend on any single test format. The American Academy of Ophthalmology has highlighted the value of such multi-method reliability when evaluating functional vision outcomes.

The CSV-1000 clinical study provides strong evidence that contrast sensitivity testing is one of the most effective and efficient ways to assess functional vision. By using only a few targeted contrast measurements, clinicians can reliably estimate a patient’s full CSF curve, enabling faster diagnosis and more informed treatment decisions. As research continues to highlight the importance of contrast in real-world vision, tools like the CSV-1000 will remain central in comprehensive clinical care.
